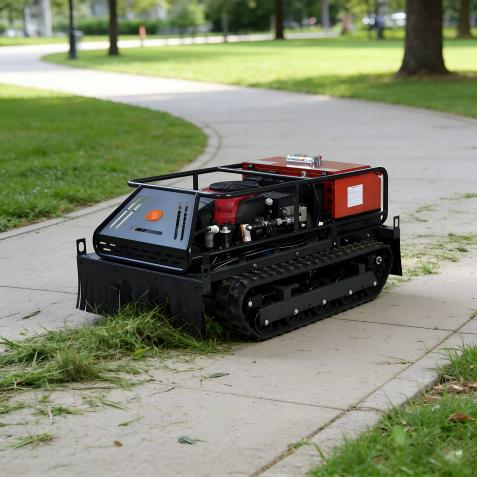

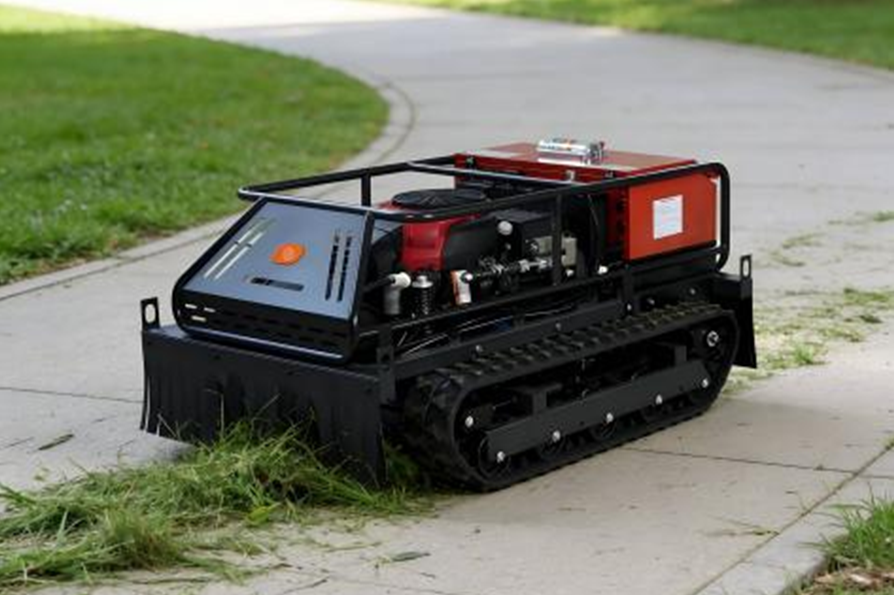

Large Green Campuses Corporate campuses, industrial parks, research parks and large institutional compounds with extensive lawns and landscape belts | Municipal Green Infrastructure Urban parks, roadside green belts, riverbanks, public squares and municipal landscape zones maintained by local authorities | Transportation Corridor Landscapes Grass areas along highways, railways, airports, and transport infrastructure where vegetation must be controlled for safety and visibility |
 |  | |

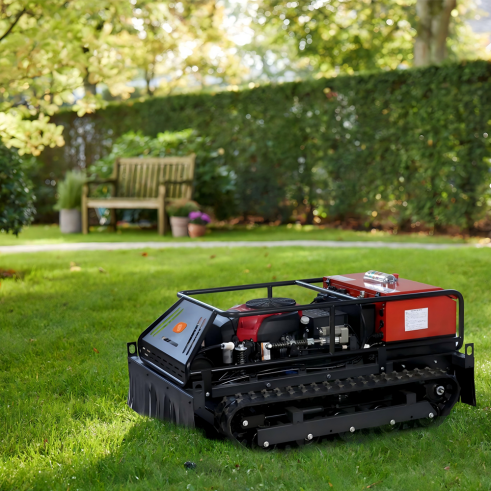

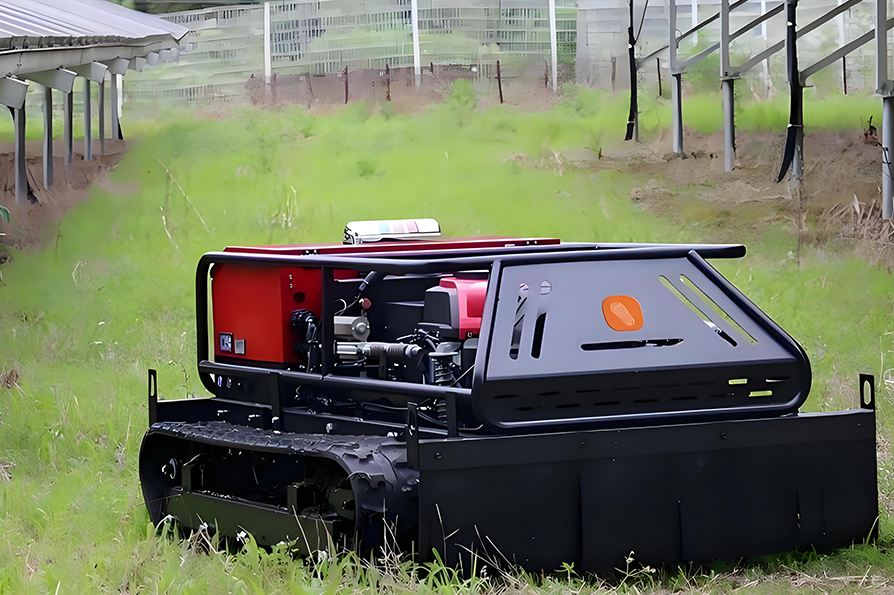

Utility & Energy Facilities Solar farms, power substations, wind farms, water treatment plants and other infrastructure sites requiring vegetation management | Residential & Commercial Landscaped Estates Large residential communities, resort properties, hotels, golf community surroundings and commercial complexes |
 |

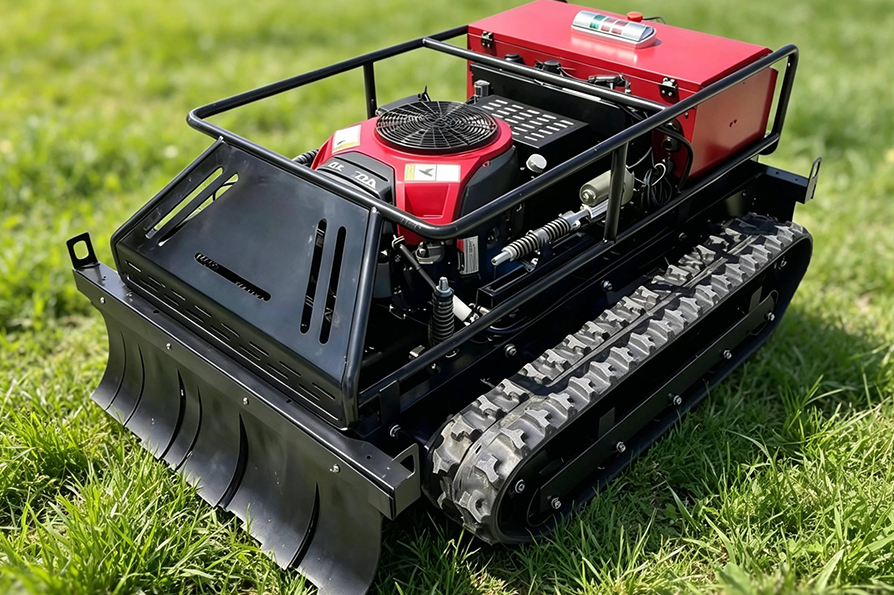

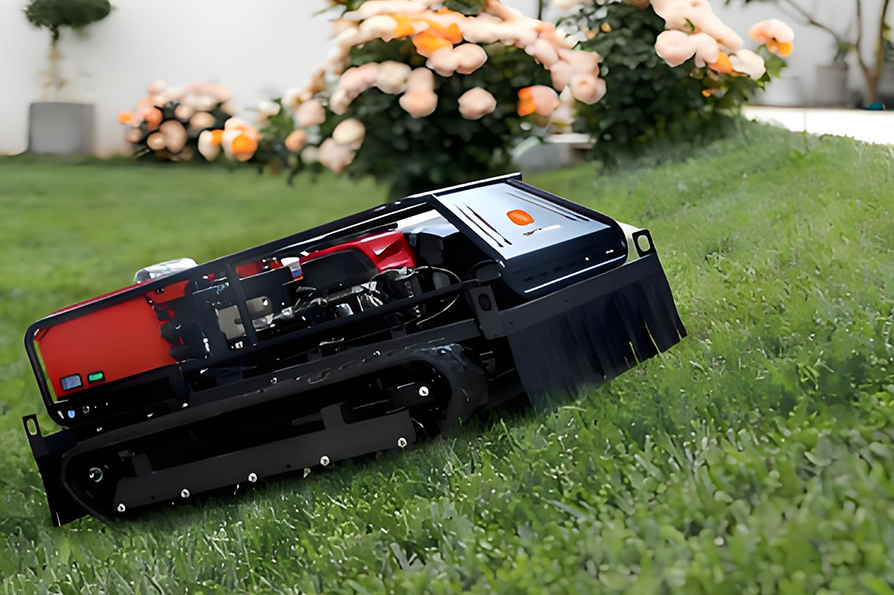

Durable & Modular Design - Load-bearing 3D frame welded with thick highstrength steel - 5 modular components for quick assembly/maintenance - elastic support columns and contour-following cutting deck prevent damage from impacts/vibrations. |
Powerful Drive System - 3kW closed-loop brushless motor with ≥95% transmission efficiency - 175N·m torque for easy climbing and obstacle crossing; closed-loop speed control ensures stable operation. |  |
 |

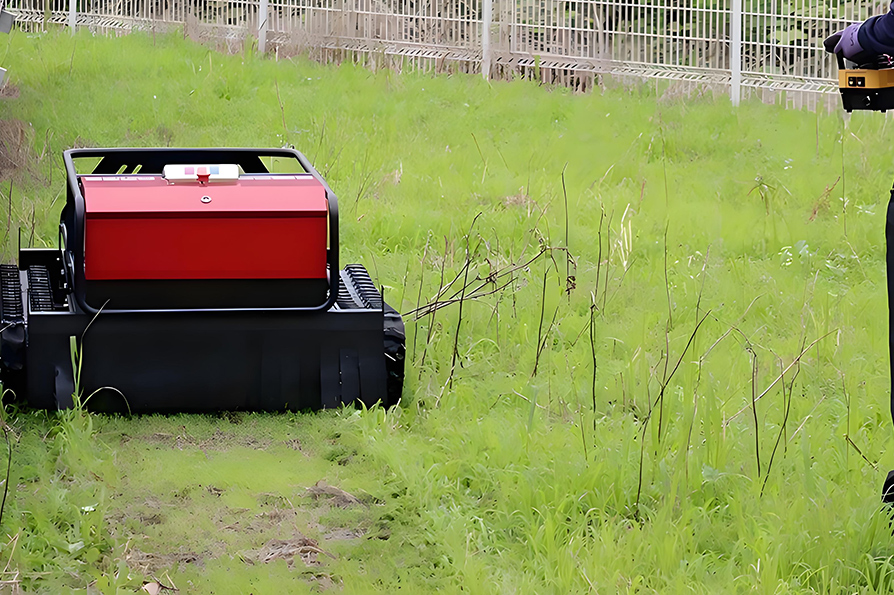

User-Friendly Operation - IP55-rated outdoor control box with centralized panel clear operation/trouble shooting guides;remote control (433MHz) for one-key start, speed adjustment, cutting deck lifting, and blade speed control (up to 100m range). |
Precision Cutting Performance - 700mm cutting width - floating cutting deck with air spring-assisted flexible lifting; 5-90mm adjustable cutting height - 2 segmented manganese steel blades with automatic speed and clutch protection for hard objects. |  |
 |

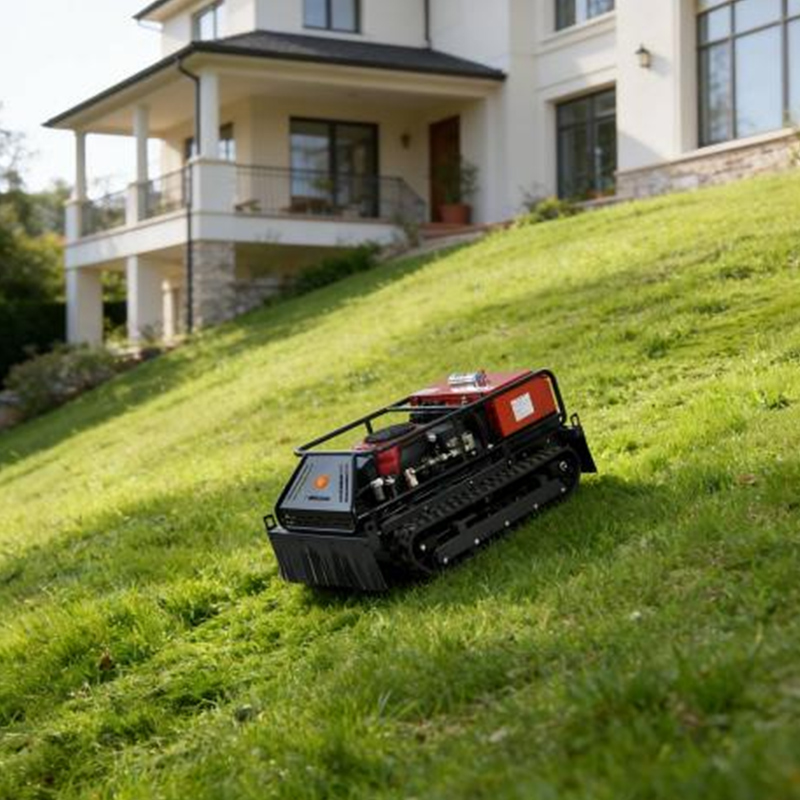

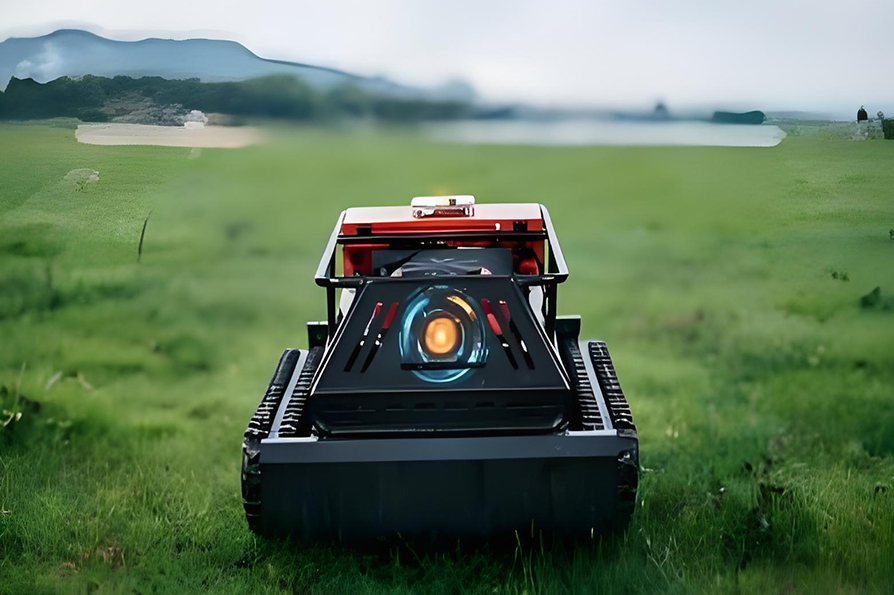

Superior Terrain Adaptability - Tank-style tracks with 45° approach angle; climbs ≤ 45°, crosses ≤15 cm vertical obstacles - wear-resistant composite tracks with low ground pressure for muddy/swampy areas. |
Efficient Hybrid Power - Self-developed extended-range system adjusts output by load to save energy - high-power air-cooled generator ensures stable AC/DC output for long working hours |  |
 |
Comprehensive Safety Protection - Emergency stop button, protective frame, transmission protection, and front/rear grass curtains - IP54-rated remote control; automatic parking and signal loss alarm. |
High Efficiency & Practicality - 2500㎡/h mowing efficiency - 10L fuel tank + 30 min pure electric runtime - 0 turning radius for flexible operation - quick access panel for easy maintenance. |  |
| Item | Unit | Value |
| Dimensions (L ×W × H) | mm | 1460 × 1100 × 685 |
| Curb Weight | kg | 320 |
| Working Efficiency | m2/h | 2500* 1 |
| Operating Travel Speed | km/h | 0-4.1 |
| Control Method | Two-hand remote control | |
| Driving Mode | MT | |
| Minimum Ground Clearance | mm | 90 |
| Max Safe Tilt Angle | ° | 45 |
| Endurance (Pure Electric) | min | 30 |
| Runtime (Pure Electric) / Runtime | min | 180 |
| (Hybrid) | ||
| Travel Load Rating | kg | 100 |
| Power Source | Hybrid Power (Gasoline/Electric) | |
| APP Functions | Multi-image transmission,path planning, and complete vehicle Information display, positioning information display, etc | |
| Machine Display Info | Mower voltage & battery level, Mower temperature | |
| Remote Controller Display Info | Mower voltage/batt , Remote batt, Motor speed , Motor temp, Various alarm info | |
| Controller | Automotive-grade controller | |
| Remote Controller | Industrial-grade digital display | |
| Remote Controller | m | ≤200 |
| Auto Hold | ● Standard | |
| Hill Start Assist | ● Standard | |
| Straight-line Assist | ● Standard | |
| Path Planning | ● Standard | |
| Anti-interference | Multiple-device support without interference | |
| Protection Rating | Consumer-grade | |
| Drive Type | Tank-style tracks | |
| Driving Speed | km/h | 0-4.1 |
| Driving Torque | N·m | 175 |
| Brake | mm | ● Standard |
| Brake Release | ● Standard | |
| Minimum Turning Radius | m | 0 |
| Max Climbing Angle | ° | ≤45 |
| Track Front Elevation Angle | ° | 45 |
| Vertical Obstacle Clearance | cm | ≤15 |
| Front/Rear Tilt Angle | ° | ≤40 |
| Left/ Right Tilt Angle | ° | ≤40 |
| Air-cooled 4-stroke Twin-cylinder Vertical Shaft Gasoline Engine | Loncin | |
| Power | kw/rpm | Max Power 15.5/3600 |
| Max Torque | N·m/rpm | 48.3/2500 |
| Displacement | cm3 | 688 |
| Oil Capacity | L | 1.9 |
| Oil Drain Valve | Included | |
| Grass Discharge Device | Standard discharge disc | |
| Fuel Tank Capacity | L | 10 |
| Fuel Level Display | Liquid level gauge | |
| Fuel Tank Drain Valve | ° | Included |
| Battery Capacity (20HR) | SLA 23 | |
| Range Extender System | ● Standard | |
| Generator Protection | Filter screen | |
| Electrical Components | Consumer-grade components | |
| Charging Time | hr | 8 |
| Protection Rating | IP55 | |
| Cutting Width | mm | 700 |
| Cutter Deck Lift Mechanism | Air spring-assisted flexible lift | |
| Cutting Height | mm | 5-90 |
| Work Area Statistics | ● Standard | |
| Blade Type | Segmented | |
| Number of Blades | PCS | 2 |
| Blade Speed Control | Manual | |
| Impact Protection | Clutch | |
| Deck Wash Port | ● Standard | |
| Quick Access Panel | ● Standard | |
| Drive Unit Temp Alarm Protection | 80℃ | ● Standard |
| Disconnection Shutdown Protection | ● Standard | |
| Anti-rollaway System | ● Standard | |
| Emergency Stop Button | ● Standard | |
| Emergency Shutdown | ● Standard | |
| Disconnection Shutdown Protection | ● Standard | |
| Protective Frame | ● Standard | |
| Protective Frame | ● Standard | |
| Grass Discharge Guard | Front/Rear leather curtains | |
| Remote Controller Protection | Drop protection | |
| Remote Controller Rating | IP54 | |
| Camera | PCS | ● Standard |
| Machine Charger | PCS | 1 |
| Remote Controller | PCS | 1 |
| Remote Controller Strap | PCS | 1 |
| Control Box Key | PCS | 1 |
| Fuel Tank Key | PCS | 2 |
| Manual + Warranty | 1 |
