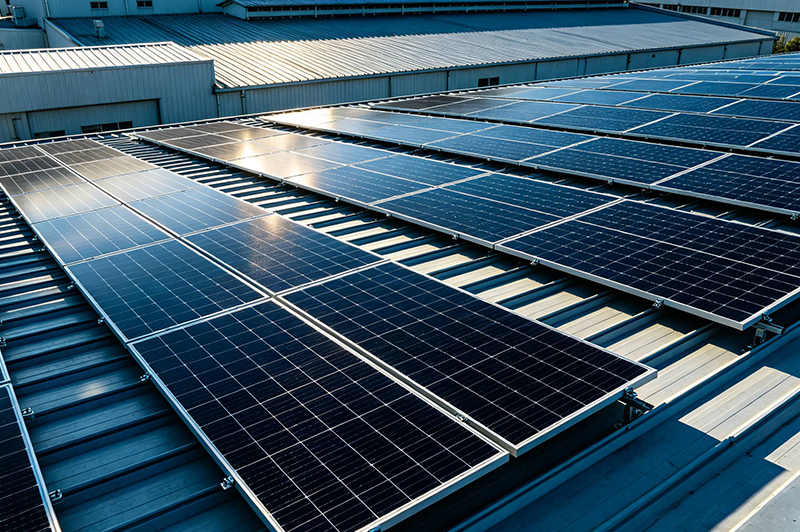

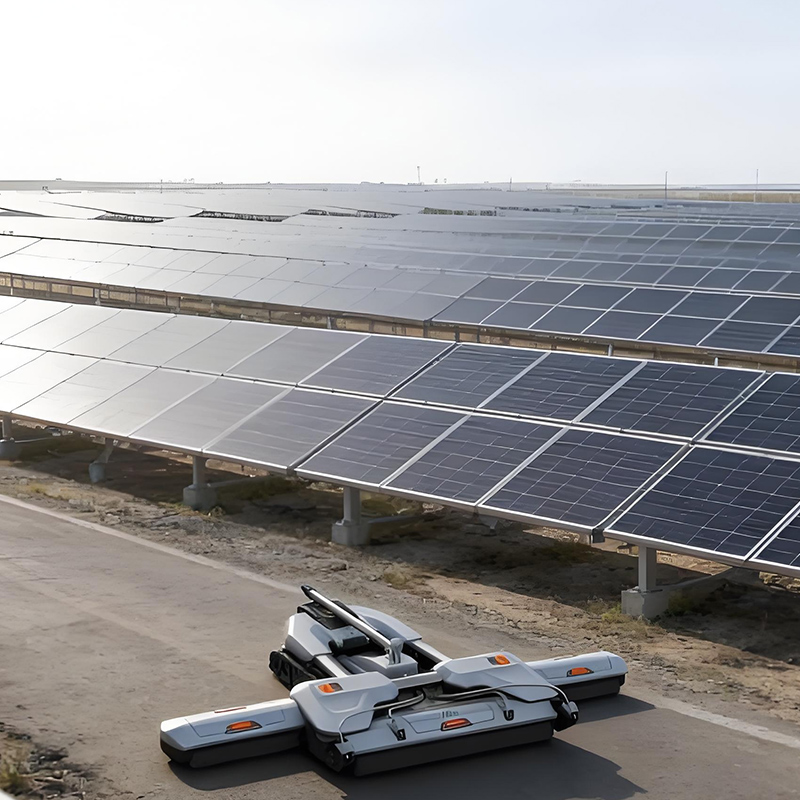

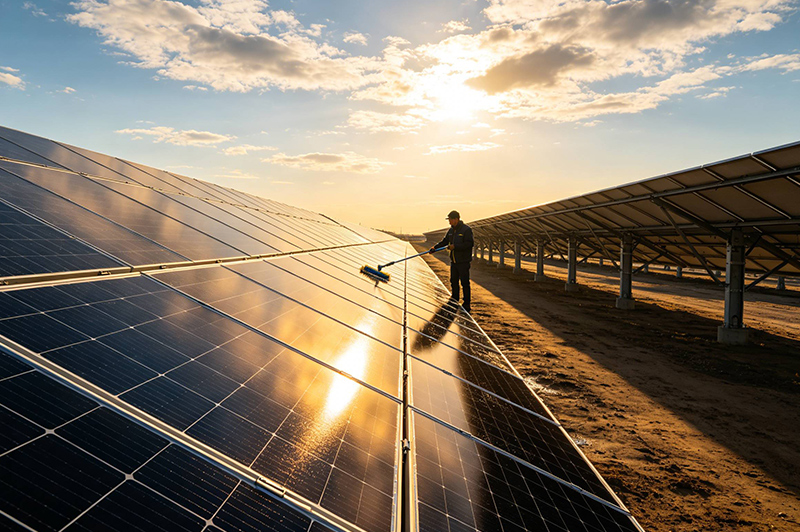

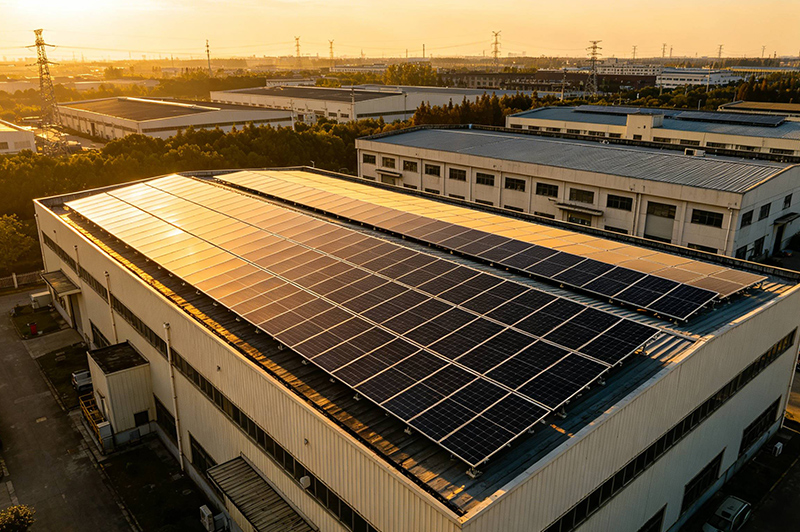

Utility-Scale Solar Farms Large ground-mounted photovoltaic plants operated by energy utilities or independent power producers with long panel rows requiring routine cleaning | Industrial & Commercial Rooftop Solar Systems Rooftop photovoltaic installations on factories, warehouses and logistics facilities with extensive panel coverage | Distributed Solar Installations Mid-sized photovoltaic arrays installed across campuses, institutions and municipal infrastructure |
 |  |  |

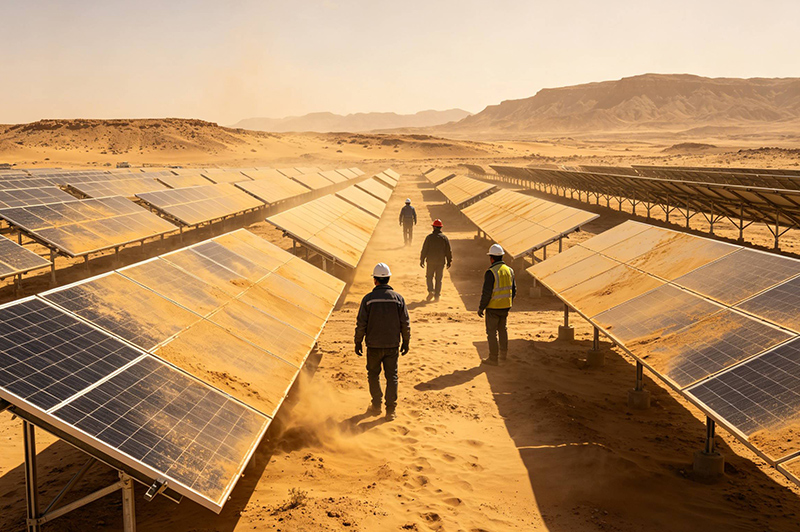

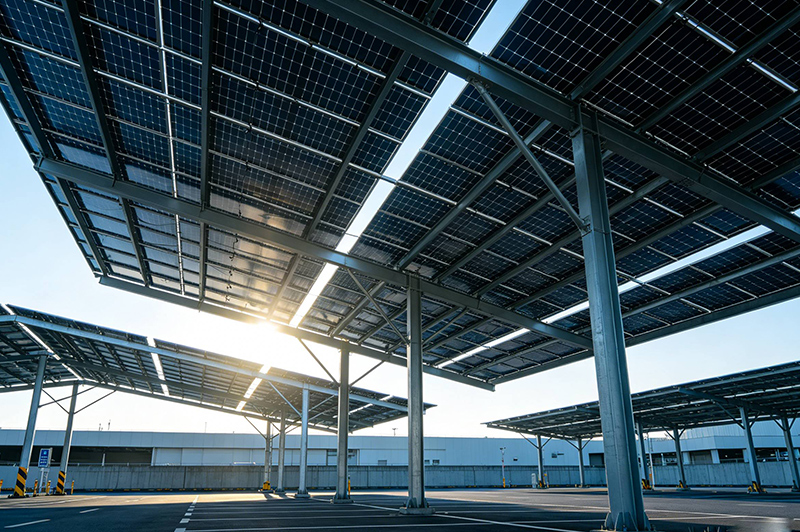

Solar Carports & Parking PV Structures Photovoltaic canopies installed above parking lots and transportation facilities | Remote & Harsh Environment Solar Sites Solar installations located in dusty, remote or water-limited environments where manual cleaning is inefficient or risky |
 |

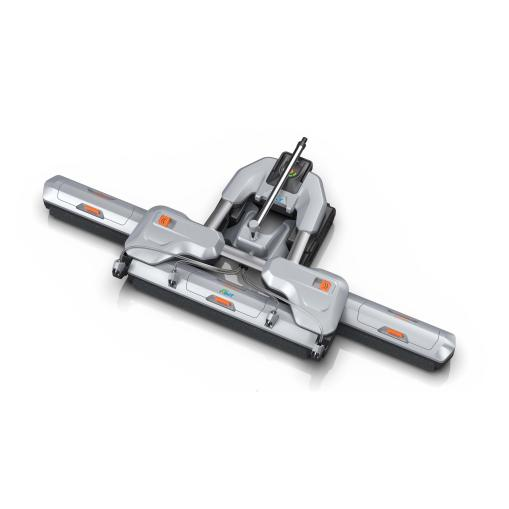

Ultra-Lightweight - Design Weighs just 12.7kg (including battery and brush), enabling easy single-person transport and reducing PV panel load |

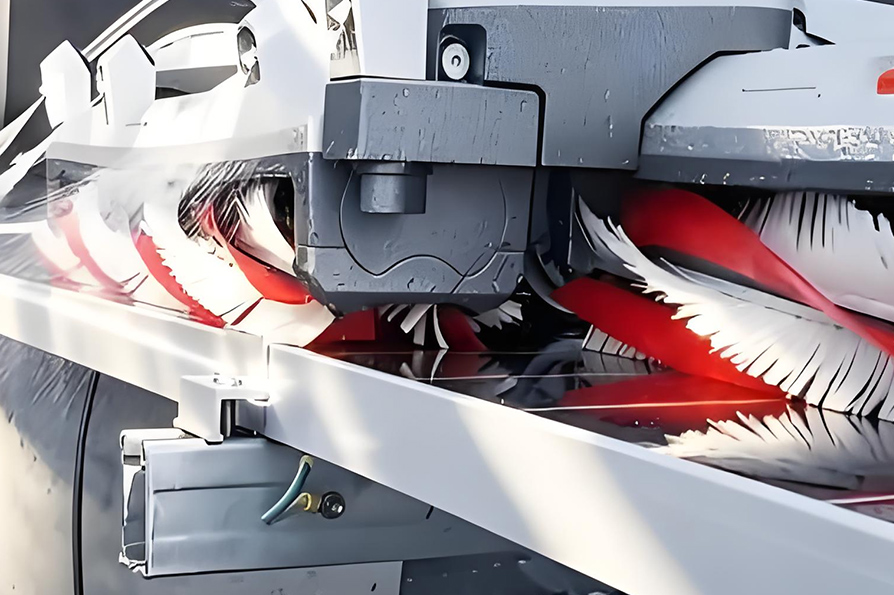

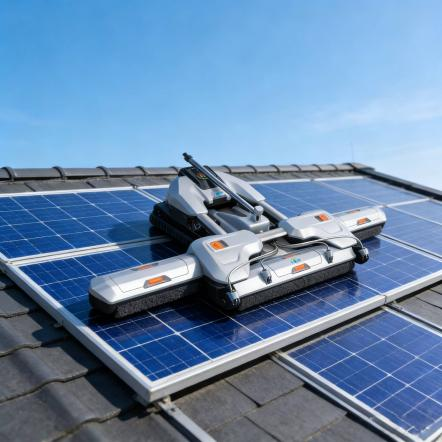

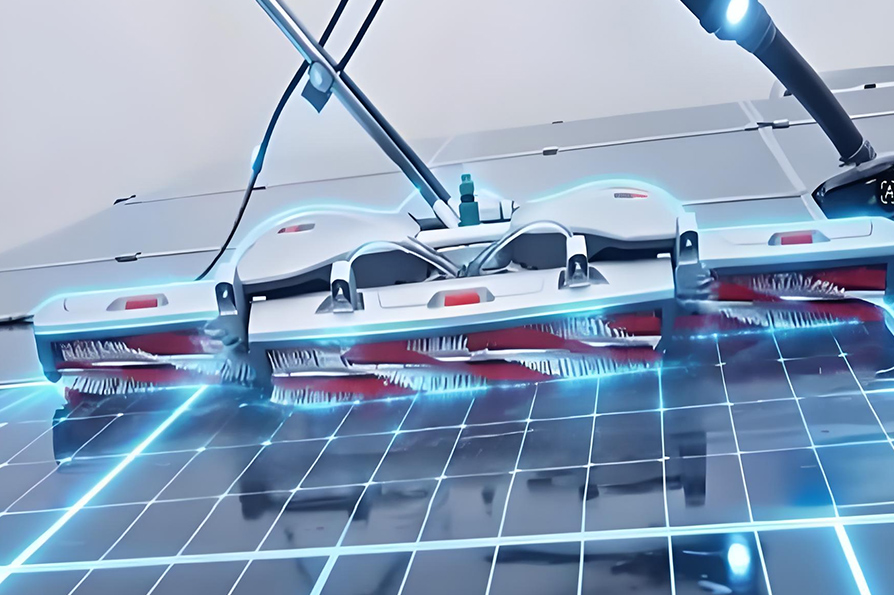

Foldable 1300mm Extra-Long Brush - Three-stage folding cleaning units with dual internal rolling brushes double cleanliness and cover large panel areas |  |
 |

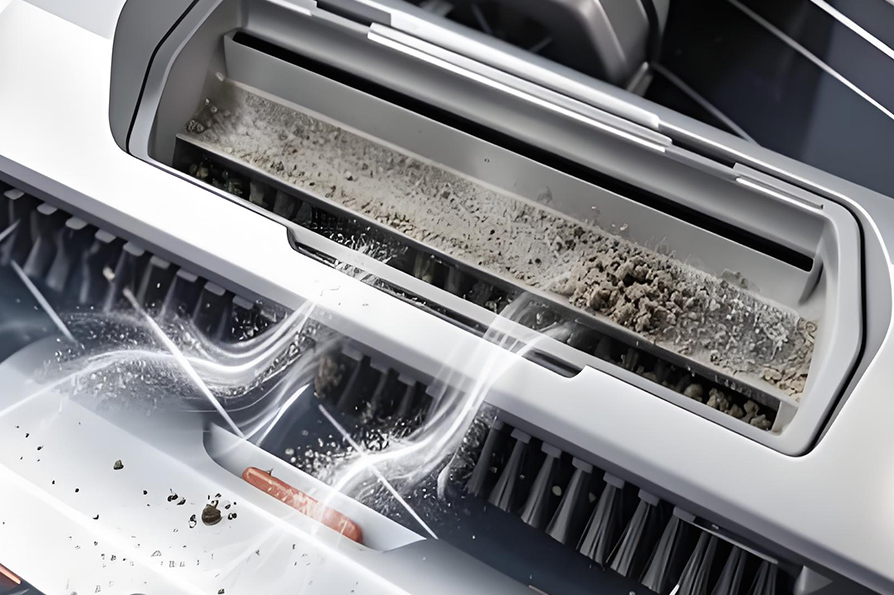

Self-Cleaning Mud Collection - Adopts Dynamic Mud Separation Technology to scrape dirt from brush bristles and recycle it into the mud box, lowering secondary pollution |
Full-Coverage Cleaning - Senses PV panel frames, adjusts posture automatically to cross gaps, and ensures no cleaning omissions |  |
 |
Triple-Layer Fall Protection - Real-time edge monitoring; stops immediately, activates warning lights, and sounds alerts when danger is detected |
Constant Speed Mode - Runs autonomously at a set speed, reducing operator labor burden - Robot, remote control, and battery all have IP65 protection, adapting to outdoor harsh environments IP65 Protection | |
|

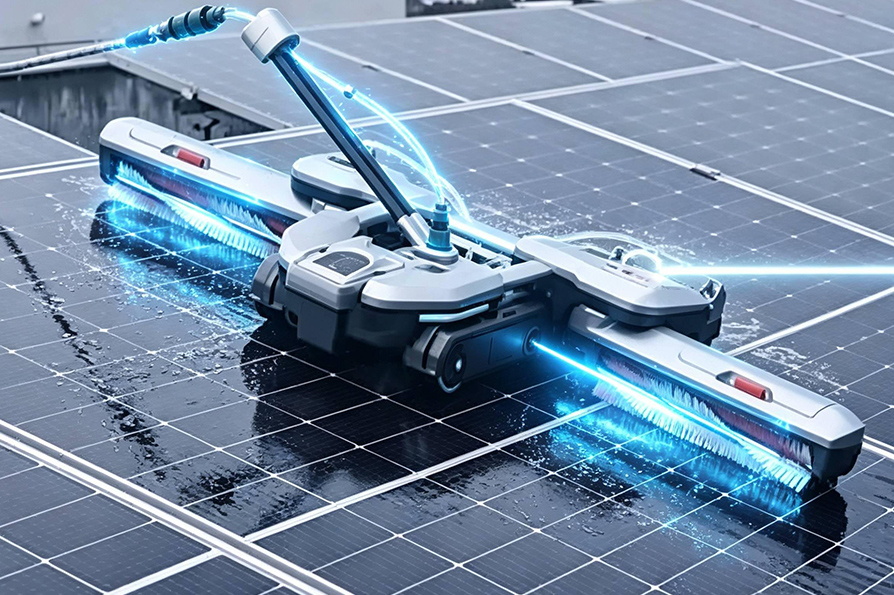

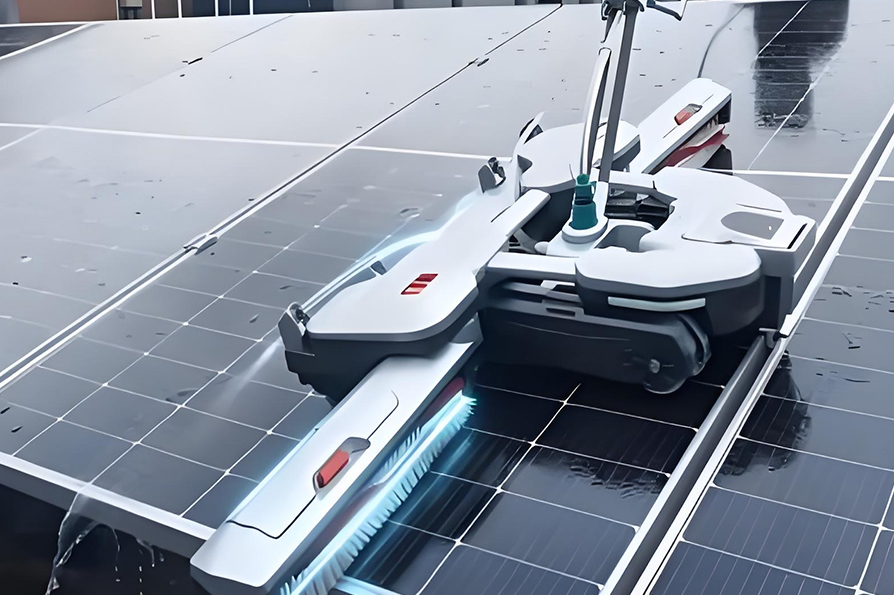

45° High-Pressure Flush - High-pressure water at 45° pre-flushes dust; a fine filter intercepts particles to avoid PV panel damage |
| Dimensions (Expanded) | 1440 * 650 * 150 mm |
| Dimensions (Folded) | 720 * 650 * 150 mm |
| Battery Capacity | 16 Ah Li-Battery |
| Battery Weight | 1.8 kg |
| Run Time | 4 h |
| Charge Time | 3.5 h |
| Climbing Capacity | 0-15° |
| Max.obstacle width to cross | 200 mm |
| Max.obstacle height to cross | 20 mm |
| Protection Class | IP65 |
| Cleaning Capacity | 1000 m2/h |
| Water Supply | External Water Supply |
| Pollutant Type | Dust, bird droppings,greasy dirt(with cleaners) |
| Water Consumption | 0-15L/min |
| Control Mode | Remote Control/APP |
| Remote Control Distance | 100 m |
| Warranty Period | 1 Year |
| Design Life | 5 Years |
